  • Repair or Replace? When a Dead or Sulfated Lead-Acid Battery Can Be Saved

    Repair or Replace? When a Dead or Sulfated Lead-Acid Battery Can Be Saved

    The moment your electric scooter battery stops holding a charge or delivers noticeably reduced range, you face a decision that has a clear financial answer if you know what to look for. Replacing a battery costs 80 to 200 US dollars depending on capacity and technology, while attempting a repair using a desulfation charger costs 20 to 50 dollars. The decision between repair and replacement is not arbitrary, and understanding which battery failure modes are recoverable and which are permanent will save you from wasting money on repairs that cannot work or, conversely, from replacing a battery that could have been saved with a simple and inexpensive intervention.

    What Can Be Saved: Early Sulfation and Correctable Problems

    The most common recoverable battery problem is early-stage sulfation, which occurs when lead sulfate crystals form on the battery plates during discharge and fail to dissolve fully during subsequent charging. Sulfation is a normal by-product of discharge, but it becomes a problem when the battery is regularly left in a partially discharged state for extended periods, allowing the sulfate crystals to grow larger and harder than they should be. Early sulfation, where the plates are covered with small loosely-adhering crystals, is recoverable in 30 to 50 percent of cases through a process called desulfation charging. Late-stage sulfation, where the crystals have fused into hard insulating layers that cover most of the plate surface, is essentially unrecoverable, with success rates below 5 percent.

    Loose electrical connections are another entirely fixable problem that is sometimes mistaken for battery failure. A battery that appears to be dead because the scooter will not start may in fact have a corroded or loose terminal connection that prevents current flow. Cleaning the terminal posts with a terminal brush, tightening the connections, and applying a thin coat of terminal grease typically restores full function with no battery repair needed. Wrong battery charger use also causes apparent battery failure. If a charger is incorrectly sized, either too low in voltage or delivering insufficient current, the battery never charges fully, and its apparent capacity appears to decline. Replacing the charger with a correctly specified unit, typically a charger rated at 14.4 to 14.7 volts for a 12-volt AGM battery, restores normal battery function immediately.

    The Desulfation Process: How It Works

    Desulfation charging works by applying a voltage slightly above the normal charging voltage to the battery over an extended period, which drives the sulfate ions back into solution and redeposits lead back onto the plates. A desulfation charge is typically performed at 13.8 to 14.4 volts for 48 to 72 hours, and the process must be monitored because an overvoltage during desulfation can damage the battery just as easily as normal overcharging. Pulse desulfation chargers, which cost 20 to 50 US dollars, use a more sophisticated approach that applies high-frequency pulse charging, breaking up sulfate crystals through a mechanical resonance effect rather than sustained overvoltage.

    To perform a manual desulfation charge, connect a fully automatic smart charger with a desulfation mode to your battery and leave it in desulfation mode for the full recommended period, which is typically 48 to 72 hours for a severely sulfated battery. Check the battery voltage every 12 hours and discontinue the desulfation if the voltage exceeds 15 volts, which indicates the charger is pushing too hard. After the desulfation cycle, perform a full charge cycle and then a capacity test by measuring the voltage under load. If the battery now holds above 12.4 volts at rest and delivers usable range, the desulfation was successful. If not, the sulfation is too advanced and replacement is the correct path.

    What Cannot Be Saved: Permanent Failure Modes

    Certain battery failure modes are structurally irreversible and no amount of desulfation or charging will restore function. Plate shedding occurs when the lead dioxide active material on the positive plates has worn away to the point where insufficient surface area remains for the electrochemical reaction to occur at useful levels. This is a wear failure that happens to every lead-acid battery eventually, and it cannot be reversed because the shed material is gone, not just converted. Physical damage from impact, dropping, or vibration-induced case cracking also cannot be repaired, because the internal seals are compromised and the electrolyte will continue to leak regardless of any attempted fix. An internal cell short, caused by dendrite growth between plates or separator failure, renders the battery unsafe to charge or use and must be replaced immediately. Grid corrosion, where the lead alloy structure of the positive grid has been converted to lead oxide by sustained overcharging, also cannot be reversed, and the battery will continue to lose capacity until it fails.

    The Decision Framework

    Use this decision tree to determine whether repair or replacement is the correct choice. If the battery is less than two years old, has been properly maintained, and shows early sulfation symptoms such as reduced capacity but no physical damage or abnormal heat during charging, a desulfation attempt is worth trying, with a 30 to 50 percent chance of meaningful recovery. If the desulfation attempt restores the battery to above 80 percent of rated capacity, keep using it. If the desulfation fails, or if the battery is more than three years old, shows physical swelling, leaks, or fails a load test, replace it. The cost of a failed desulfation attempt is 20 to 50 dollars. The cost of ignoring a genuinely failed battery and continuing to ride with poor range and unpredictable shutdowns is the risk of being stranded, plus the cumulative frustration of reduced mobility.

  • How to Responsibly Recycle Old Lead-Acid Batteries: Environmental Guide

    How to Responsibly Recycle Old Lead-Acid Batteries: Environmental Guide

    Lead-acid batteries are the most successfully recycled consumer product in human history, with a global recycling rate that exceeds 98 percent in developed economies and is steadily improving in emerging markets. This remarkable achievement is driven by both the economic value of the lead content and the strict environmental regulations that govern lead disposal in virtually every country with an automotive sector. When you replace the battery in your electric scooter, the old lead-acid battery is not waste, it is a valuable raw material that can be fully reclaimed and used to manufacture a new battery. Understanding how the recycling process works, where to take your old battery, and what legal obligations apply to you as a battery owner helps ensure that your old battery is handled responsibly rather than ending up in an illegal dump where its lead and acid content can contaminate soil and groundwater.

    Why Lead-Acid Batteries Are 98 Percent Recyclable

    The lead-acid battery is uniquely suited to recycling because its chemistry is based on three materials that can each be recycled indefinitely without loss of quality: lead, plastic, and acid. The lead dioxide paste on the positive plates and the sponge lead on the negative plates are both recovered and smelted into pure lead ingots that are reformed into new battery grids and plates. The polypropylene plastic case and cover are ground up, cleaned, and reprocessed into new battery cases with no degradation in material quality. The sulfuric acid electrolyte is neutralized using sodium hydroxide or lime to produce sodium sulfate, an industrial chemical used in glass manufacturing, textile processing, and food production, or it is processed back into new acid for battery electrolyte use.

    This closed-loop recycling system means that every new lead-acid battery contains approximately 60 to 80 percent recycled material by weight, making it one of the most sustainable consumer products in the world. By contrast, lithium-ion batteries currently achieve recycling rates of only 5 to 10 percent globally, with most of the valuable materials either unrecovered or recovered through energy-intensive processes that do not match the simplicity of lead-acid recycling.

    The Environmental Hazards of Improper Disposal

    Despite the excellent recycling infrastructure available in most countries, a significant number of lead-acid batteries still end up in illegal disposal sites each year, causing serious environmental and public health problems. Lead is a neurotoxin that accumulates in the body over time, and children are particularly vulnerable to lead exposure, which causes developmental delays, cognitive impairment, and behavioral problems at blood lead levels as low as 5 micrograms per deciliter. When an old battery is discarded in a regular landfill or dump, the lead plates gradually corrode and leach lead compounds into the surrounding soil, and these compounds migrate through groundwater to contaminate wells, agricultural land, and waterways.

    In countries with weak enforcement of environmental regulations, such as Nigeria, Ghana, Kenya, and parts of Southeast Asia, informal battery recycling operations that involve breaking open batteries and smelting the lead in open pits expose workers and surrounding communities to dangerous levels of lead dust and fumes. These operations produce severe health outcomes in local populations and create long-term contamination of land that renders it unsuitable for agriculture. Choosing to recycle your battery through a certified collection point is the most direct action you can take to prevent your battery from entering this harmful supply chain.

    How the Lead-Acid Recycling Process Works

    When an old battery arrives at a certified recycling facility, it first goes through a mechanical shredding process that breaks the battery case apart and separates the plastic, lead, and electrolyte components. The lead paste is removed from the grids through a washing process, and the resulting lead paste is dewatered and smelted in a furnace at temperatures around 1,100 degrees Celsius to produce lead ingots with a purity of approximately 99.9 percent. These ingots are then used to cast new grids and posts for new batteries. The plastic components are washed, dried, and extruded into plastic pellets that are sold to battery manufacturers for use in new battery cases. The acid is neutralized and converted to sodium sulfate for industrial use or reconcentrated into new battery-grade sulfuric acid.

    This entire process recovers over 98 percent of the battery’s weight, with the small amount of unrecoverable material consisting of separator materials and residue that is disposed of through licensed hazardous waste facilities. The energy required to recycle a lead-acid battery is approximately one-fifth of the energy required to manufacture a new battery from raw materials, making recycling far more energy-efficient than primary production.

    Where to Recycle Your Battery

    In the United Kingdom, auto parts retailers including Halfords, National Tyres, and ATS Euromaster, as well as local council household waste recycling centres, accept lead-acid batteries free of charge under the Producer Compliance Scheme that is mandated by the Batteries and Accumulators Regulations 2008. In Germany, the Alt Batteries Act requires retailers who sell batteries to take back old ones of the same type free of charge, meaning any Auto Teile, Conrad Electronics, or battery specialist shop will accept your old scooter battery. In Australia,Battery World, Super Cheap Auto, and most local council waste facilities operate collection programs, with many councils charging a small recycling levy that is typically offset by a 5 to 10 dollar credit for returning an old battery. In Nigeria, formal recycling infrastructure is developing through organisations such as the Lagos State Environmental Protection Agency, and informal collection is available through battery dealers and automotive workshops in major cities.

    In the United States, most AutoZone, O’Reilly Auto Parts, and Advance Auto Parts stores offer battery recycling, and many auto repair shops accept old batteries as part of their standard service. Federal law prohibits disposing of lead-acid batteries in municipal solid waste, and most states impose additional regulations that make retail collection the most practical disposal route. Regardless of where you live, your old battery should never be placed in regular household waste. Most battery retailers and auto parts stores are required by law to accept your old battery for recycling at no charge when you purchase a new one.

    CHISEN Take-Back Programme

    CHISEN operates a battery take-back programme for all customers who purchase replacement batteries, providing a free recycling collection option for end-of-life batteries regardless of where they were originally purchased. Customers contact their regional CHISEN distributor or the main sales office via email at sales@chisen.cn to arrange collection, and the programme covers most regions where CHISEN batteries are sold. This programme ensures that every CHISEN battery completes its lifecycle in a certified recycling facility rather than an illegal disposal site.

  • Electric Scooter Battery Wiring Explained: What Happens If You Connect It Wrong?

    Electric Scooter Battery Wiring Explained: What Happens If You Connect It Wrong?

    The wiring inside an electric scooter battery system is the circulatory system of the vehicle, and understanding how it works is essential for anyone who intends to replace a battery, install an upgraded pack, or simply diagnose a mysterious no-start condition. Wiring mistakes are the number one cause of battery fires in DIY electric vehicles, and they can also destroy expensive components like the controller and motor within seconds of a wrong connection. The good news is that the underlying principles are simple, and once you understand series versus parallel connections, polarity, and the basics of BMS wiring, you can work on your scooter’s electrical system with confidence.

    Series Connections: Adding Voltage

    When two or more batteries are connected in series, the positive terminal of one battery is linked to the negative terminal of the next, and the voltages add together while the amp-hour capacity remains the same as the weakest battery in the string. In a typical 48-volt electric scooter, four individual 12-volt batteries are connected in series to produce 48 volts. The positive terminal of battery one connects to the negative terminal of battery two, the positive of battery two connects to the negative of battery three, and the positive of battery three connects to the negative of battery four. The free positive terminal of battery one and the free negative terminal of battery four become the main positive and main negative of the entire pack, connecting to the scooter’s controller. If each individual battery is rated at 12Ah, the 48-volt pack is rated at 12Ah, not 48Ah, because the current must flow through all four batteries in sequence. The capacity is limited by the battery that drains first, which in a healthy series string is all of them simultaneously.

    Series connections are what give electric scooters their power and speed. A 48-volt system delivers significantly more power to the motor than a 36-volt system, because power in watts equals voltage times current, and a higher voltage allows more power delivery for the same current. This is why most mid-range and high-performance electric scooters use 48V, 60V, or even 72V battery configurations rather than lower voltages.

    Parallel Connections: Adding Capacity

    When two or more batteries of the same voltage are connected in parallel, all the positive terminals are connected together and all the negative terminals are connected together, producing a pack with the same voltage as a single battery but with amp-hour capacities that add together. Two 12-volt 10Ah batteries connected in parallel produce a 12-volt 20Ah pack. This is a less common configuration in electric scooters than series connections, but it appears in battery packs that use multiple cells in parallel within each series string, and it is the configuration used when combining two identical battery packs to double runtime.

    The critical safety rule for parallel connections is that both batteries must be at the same voltage before connecting them together. If you connect a fully charged 12-volt battery in parallel with a deeply discharged 12-volt battery, the charged battery will rush current into the discharged battery at a potentially dangerous rate, generating heat and potentially causing electrolyte boiling in flooded batteries. Always charge both batteries to the same voltage, ideally both to 100 percent, before making a parallel connection.

    Polarity Reversal: The Costliest Mistake

    Connecting a battery with reversed polarity, meaning the positive terminal is connected to the negative input and vice versa, causes immediate and severe damage to the controller and any other electronic components connected to the battery. The controller contains semiconductor devices called MOSFETs that are designed to conduct current in one direction only. Applying reverse polarity forces these devices to conduct in the wrong direction, and they fail catastrophically, often within a fraction of a second. The result is a controller that emits a sharp crackling sound, produces smoke, and becomes completely non-functional.

    Controller replacement for an electric scooter costs between 50 and 200 US dollars depending on the scooter’s power rating and whether the replacement is an OEM or aftermarket unit. In addition, reverse polarity can also damage the battery management system if one is present, and in rare cases it can cause the battery’s protection circuit to fail, creating a fire risk. The simple practice of always double-checking polarity before making any connection eliminates this risk entirely. Positive terminals are marked with a plus sign, the letters POS, or a red cover or ring, while negative terminals are marked with a minus sign, the letters NEG, or a black cover or ring.

    What to Do If You Smell Burning

    If you connect a battery and immediately smell burning, melting plastic, or the sharp acrid odor of overheated electronics, disconnect the battery immediately. Unplug the main battery connector without touching the wires, move the scooter away from flammable materials, and do not touch any components for at least five minutes to allow them to cool. Inspect the controller for any visible signs of melting, scorching, or smoke residue, and inspect the wiring for melted insulation. Do not attempt to ride the scooter or reconnect the battery until a qualified technician has inspected and tested all components. If the burning smell was accompanied by visible smoke or fire, the battery itself may be in a dangerous condition and should be inspected by a professional before any further use.

    BMS Wiring Basics

    A Battery Management System, commonly found in lithium-ion packs and increasingly in sealed AGM configurations, monitors and balances individual cell voltages, protects against overcharge and over-discharge, and prevents short circuits. The BMS connects to the battery cells through a series of sense wires, typically one wire per cell junction in a multi-cell pack, and connects to the main positive and negative terminals through thick high-current wires that carry the charge and discharge current. Understanding that the sense wires carry only monitoring data and the power wires carry actual current is essential for safe troubleshooting. Never disconnect a BMS sense wire while the battery is under load, as this can cause voltage spikes that damage the BMS or connected electronics.

  • Can You Upgrade to a Bigger Capacity Lead-Acid Battery? Compatibility Issues First

    Can You Upgrade to a Bigger Capacity Lead-Acid Battery? Compatibility Issues First

    The most common battery upgrade request from electric scooter owners is a simple one: replace the existing battery with one that has a higher amp-hour rating, giving the scooter a longer range between charges. The good news is that in the majority of cases, this upgrade is entirely feasible and technically straightforward. The not-so-good news is that there are specific compatibility constraints that must be respected, and failing to understand them can result in a battery that does not fit, a controller that overheats, or an upgrade that costs more than the benefit it delivers.

    The Same Voltage, Higher Amp-Hour Rule

    The fundamental principle of lead-acid battery upgrading is that you can always replace a battery with one of the same voltage and higher amp-hour capacity, provided the physical dimensions fit within the battery compartment. This is because a higher amp-hour rating means the battery contains more lead plate material, which provides more active surface area for chemical reactions and therefore allows the battery to deliver current for a longer period at any given discharge rate. The voltage of the battery is determined by the electrochemical potential of the lead-acid chemistry, which is fixed at approximately 2.1 volts per cell, or 12.6 volts per fully charged 12-volt battery. This voltage does not change when you increase capacity, which means the scooter’s controller and motor see exactly the same operating voltage regardless of whether you install a 12Ah or a 20Ah battery.

    The practical upgrade path that most scooter owners pursue is from a 48V 12Ah pack to a 48V 20Ah pack. A 48V 12Ah pack composed of four 12V 12Ah batteries stores 576 watt-hours of energy, while a 48V 20Ah pack stores 960 watt-hours, an increase of 67 percent in available energy. For a typical electric scooter that consumes 15 to 18 watt-hours per kilometer, this upgrade extends the theoretical range from approximately 32 to 38 kilometers to 53 to 64 kilometers. Real-world range, accounting for hills, wind, cargo, and battery degradation over time, is typically 20 to 30 percent lower than theoretical range, meaning the 48V 20Ah pack delivers 37 to 45 kilometers of real-world range compared to 22 to 27 kilometers from the 12Ah pack.

    The price difference between these two configurations is significant. A complete 48V 12Ah lead-acid battery pack typically costs 60 to 80 US dollars, while a 48V 20Ah pack costs 100 to 150 US dollars, making the per-watt-hour cost of the larger pack marginally better at approximately 0.10 to 0.12 dollars per watt-hour compared to 0.12 to 0.14 dollars per watt-hour for the smaller pack.

    Physical Size and Weight Constraints

    The primary practical limitation on upgrading to a higher capacity battery is physical space. Higher amp-hour batteries contain more lead plate material, which makes them physically larger and significantly heavier than lower capacity units. A 12V 12Ah sealed AGM battery typically measures approximately 151 by 99 by 94 millimeters and weighs 3.5 to 4.0 kilograms, while a 12V 20Ah unit measures approximately 181 by 77 by 167 millimeters and weighs 5.5 to 6.5 kilograms. When you multiply these numbers by four for a 48-volt pack, the weight difference between a 48V 12Ah system and a 48V 20Ah system is approximately 8 to 12 kilograms, which the scooter’s frame, suspension, and wheel bearings must accommodate.

    Before purchasing an upgraded battery, measure the interior dimensions of your battery compartment carefully, accounting for any clearance needed around the battery for ventilation and wiring. Check whether the compartment has a defined maximum weight rating, which most manufacturer specifications will state. Adding 10 kilograms to the scooter’s weight will reduce its handling responsiveness and increase the strain on the suspension, but for a commuter scooter primarily used on flat urban roads, this weight increase is usually acceptable. For scooters intended for hill climbing or sport riding, the additional unsprung weight of a heavier rear battery pack can affect ride quality noticeably.

    Controller Current Limits: The Hidden Constraint

    Every electric scooter controller is rated for a maximum continuous current output, typically between 20 and 40 amperes depending on the scooter’s power class. When you install a higher capacity battery, the controller does not automatically draw more current or deliver more power. However, a higher capacity battery can sustain a given current draw for longer, which means the motor can operate at its rated power for a longer period before the battery is depleted. This is the intended effect of an upgrade and is not a problem.

    The actual constraint comes from the fact that a higher capacity battery also has a lower internal resistance, which means it can deliver higher peak currents if the controller requests them. A controller that is already running near its maximum current limit on the original battery will continue running at the same limit on the upgraded battery, so no harm is done provided the controller is not modified. The concern arises if the upgraded battery is operated with a controller that has a higher current limit than the battery’s maximum discharge rating. A quality 12V 20Ah AGM battery typically has a maximum continuous discharge rating of 20 to 25 amperes and a peak discharge rating of 40 to 60 amperes for short bursts, so it is safe with any controller rated at 30 amperes or less, but a controller rated at 40 amperes or higher may exceed the battery’s continuous discharge rating during sustained high-power operation.

    When a Higher Voltage Upgrade Makes Sense and When It Does Not

    Upgrading to a higher voltage, such as changing from a 48V pack to a 60V pack, is technically possible but requires replacing the controller as well, because the controller must be matched to the battery voltage to prevent overvoltage damage to the motor and other electronics. This makes a voltage upgrade a significantly more expensive project, typically costing 150 to 300 dollars for a matched controller and battery combination, compared to 100 to 150 dollars for a same-voltage capacity upgrade. More importantly, a voltage upgrade changes the scooter’s performance characteristics in ways that may not be desirable, including increased torque and speed at the expense of reduced runtime and increased stress on the motor windings. For the vast majority of electric scooter users, upgrading capacity within the same voltage is the correct choice that delivers the most range improvement per dollar spent.

  • Replaced the Battery But Still Have Poor Range? 4 Other Problems to Check

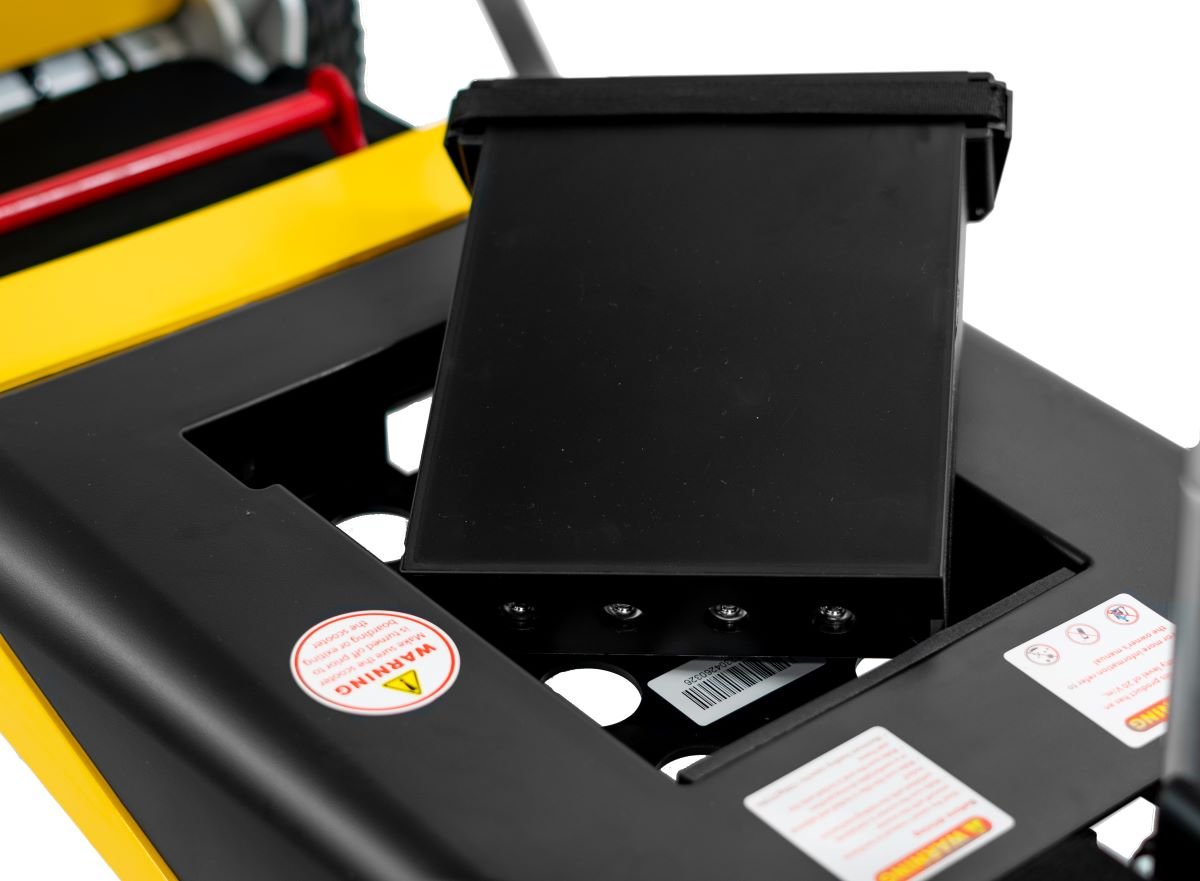

    Replaced the Battery But Still Have Poor Range? 4 Other Problems to Check

    Replaced the Battery But Still Have Poor Range? 4 Other Problems to Check

    You bought a brand-new battery, installed it carefully, and charged it fully — but your electric scooter’s range is still disappointing. Before you blame the battery or return it in frustration, there are four hidden culprits that commonly sabotage range even when the battery itself is perfectly healthy. Understanding these mechanical and electrical issues can save you money, keep you safer on the road, and help you recover the performance you expected from your new battery in the first place.

    Tire Pressure: The Most Overlooked Range Killer

    Tire pressure has a dramatic and direct effect on how far your electric scooter can travel on a single charge. When tires are underinflated, the contact patch with the road expands, dramatically increasing rolling resistance. For electric scooter tires, the optimal pressure range sits between 35 and 40 PSI. Running them at 25 PSI instead of 40 PSI on a typical 15-kilometer daily commute can increase energy consumption by approximately 30 percent. That means a scooter that should deliver 50 kilometers of range on a full charge might only manage 35 kilometers — making you think your new battery is faulty when the real problem is sitting flat in your driveway.

    Checking and adjusting tire pressure takes only a couple of minutes with a basic pressure gauge, and it is the single cheapest maintenance action that delivers the most measurable range improvement. Riders in cities like Bangkok frequently encounter potholes and rough road surfaces that gradually lower tire pressure without the rider noticing, especially on the rear wheel which carries more load. It is worth checking tire pressure at least once a week, and always before a long ride. Investing in a portable digital pressure gauge that clips onto your scooter’s storage compartment is a small expense that pays back in range almost immediately.

    Controller Overheating: The Silent Performance Throttle

    The electronic controller is the brain of your electric scooter, managing the flow of power from the battery to the motor. What many riders do not realize is that heat is the enemy of electronic efficiency. When a controller runs above 80 degrees Celsius, it begins to thermally throttle its output, reducing the torque delivered to the motor and making the scooter feel sluggish and unresponsive even with a fully charged battery. This is not a defect — it is a protective mechanism built into most controllers to prevent permanent damage to the semiconductor components inside.

    The most common cause of controller overheating is degraded thermal interface material, commonly known as heat sink paste, between the controller casing and its mounting surface. Over months and years of thermal cycling, this paste dries out and cracks, losing its ability to transfer heat away from sensitive electronics. If you notice your scooter’s acceleration dropping noticeably after the first ten minutes of riding, or if the controller housing feels uncomfortably hot to touch after a moderate ride, thermal paste replacement is worth investigating. The part itself costs between $5 and $15, though labor from a technician may add to the total. For delivery riders in Manila who spend six or more hours per day on their scooters, this is a maintenance item that directly affects earning potential.

    Motor Bearing Wear: Friction That Steals Your Kilometers

    Motor bearing wear is one of the most insidious range thieves because it develops gradually and the symptoms are easy to dismiss. The bearings inside the electric motor hub allow the rotor to spin with minimal friction. When these bearings wear down due to dust, moisture infiltration, or simply age, the motor rotor begins to drag against surfaces it should not touch. The telltale warning sign is a squeaking, grinding, or rumbling noise that appears when the motor is spinning, particularly at higher speeds.

    A scooter with worn motor bearings can consume 10 to 25 percent more energy to maintain the same speed compared to one with properly lubricated bearings. In the worst cases, the added friction can generate enough heat to degrade the magnets inside the motor, permanently reducing the motor’s magnetic efficiency. For riders navigating Bangkok’s notoriously uneven roads, every pothole and curb impact puts stress on motor bearings, accelerating wear. A complete bearing replacement typically costs between $10 and $30 for parts, and it restores the motor to near-original efficiency. Ignoring the problem can eventually require a full motor replacement, which costs ten times as much. If you hear unusual sounds from the motor hub, have them inspected before your next long ride.

    Brake Drag: The Hidden Energy Drain

    Brake drag refers to the condition where brake pads or shoes maintain partial contact with the braking surface even when you are not applying the brake lever. Even a slight amount of constant contact consumes energy because the motor must work harder to overcome the friction the brakes are creating. In most electric scooters, improperly adjusted brake cables, swollen brake shoes from moisture exposure, or brake mounts that have shifted slightly after rough handling are the usual suspects. The energy penalty from brake drag typically ranges from 10 to 15 percent of total energy consumption, which translates directly into reduced range.

    In cities like Lagos where stop-and-go traffic is constant, riders tend to make frequent braking adjustments. This repeated use can gradually pull the brake cable tighter, creating a situation where the pads never fully disengage from the disc or drum. Checking brake clearance is straightforward: lift the scooter, spin the wheel by hand, and observe how freely it rotates. You should be able to spin it with a gentle flick and watch it coast for several revolutions. If it stops within one or two revolutions, brake drag is almost certainly present. Adjusting the cable tension or replacing worn brake shoes resolves the issue. Delivery riders in particular should treat brake adjustment as part of their pre-ride checklist, as small amounts of drag accumulate into significant energy waste over hundreds of kilometers each week.


    Addressing these four issues will either restore the range your new battery was supposed to deliver or confirm whether the battery itself needs further investigation. In most cases, riders find that at least one of these problems is contributing to their poor range, and fixing it costs a fraction of what a battery replacement would set them back.

  • Electric Scooter Lead-Acid Battery Replacement: What Tools You Actually Need

    Electric Scooter Lead-Acid Battery Replacement: What Tools You Actually Need

    Replacing the battery on an electric scooter is one of the most cost-effective DIY maintenance tasks you can perform, and it is well within the capability of anyone who has replaced a car battery or done basic home electrical work. The job typically takes thirty to sixty minutes from start to finish, and sourcing a replacement battery independently rather than through an authorized service center can save you forty to sixty percent on the total cost. Understanding exactly what tools you need, how to identify the correct replacement battery from the specifications label, and the correct step-by-step procedure for installation will transform what might seem like an intimidating repair into a straightforward afternoon project.

    The Complete Tools and Materials List

    Before you begin, gather everything you need so the job can proceed without interruption. The essential tools are a set of socket wrenches or nut drivers, typically 8mm and 10mm sizes for most scooter battery compartments, which you can purchase for eight to fifteen dollars as a set from any hardware store. A Phillips head screwdriver, size number 2, is needed for removing the battery compartment cover and any mounting brackets. A digital multimeter, available for five to ten dollars, is essential for verifying voltage and polarity before and after installation. Electrical tape, preferably red and black for polarity identification, costs under three dollars and helps organize wiring connections.

    For safety equipment, you need a pair of insulated work gloves rated for electrical work, which cost ten to twenty dollars and protect against accidental shorts, and safety glasses priced at five to ten dollars that guard against any accidental electrolyte splash from flooded batteries. If you are working with a flooded lead-acid battery, a small container of baking soda and water for neutralizing any acid that may have leaked during removal is a sensible precaution, along with paper towels or shop rags for cleanup. A headlamp or portable work light is extremely useful if you are working in a garage or driveway with limited overhead lighting.

    The total cost of tools and safety equipment, assuming you do not already own a multimeter, comes to approximately thirty to fifty dollars. This investment pays for itself the first time you replace a battery instead of paying a shop labor charge of twenty to forty dollars for a fifteen-minute job.

    Identifying Your Battery Specifications

    The most critical step in replacing your battery correctly is reading the specifications label on your existing battery to ensure the replacement matches. Every lead-acid battery used in electric scooters has a label that states its voltage, amp-hour capacity, and physical dimensions, along with a serial number and date of manufacture. The voltage is stated clearly as 12V for a single battery or 24V, 36V, 48V, or 60V for multi-battery packs wired in series. The amp-hour rating, such as 12Ah or 20Ah, tells you the capacity of the battery and directly determines how far your scooter can travel on a single charge.

    On a 48-volt system, the most common configuration for mid-range electric scooters, you will typically find four individual 12-volt batteries connected in series inside the battery compartment. The amp-hour rating of each battery in the string determines the total capacity of the pack. A 48V 12Ah pack contains four 12V 12Ah batteries, while a 48V 20Ah pack contains four 12V 20Ah batteries. When purchasing replacement batteries, you must match the voltage exactly and ensure that the physical dimensions of the replacement battery fit within the battery compartment. A battery that is 5mm too tall or 10mm too wide will not close the compartment properly, creating vibration damage and potential short circuits.

    Step-by-Step Removal Procedure

    Before touching any battery wiring, disconnect the charger if it is plugged in, then switch off the scooter’s main power switch and remove the key if the scooter has one. This eliminates any possibility of a short circuit while you are working inside the battery compartment. Flip the scooter on its side or support it on a stand so you can access the battery compartment easily, and take a photograph of the battery and wiring arrangement before removing anything, which serves as a reference for reinstallation.

    Remove the battery compartment cover by unscrewing the fasteners around its perimeter, then carefully slide or lift the cover away from the chassis. You will see the battery or batteries with wiring connections secured by ring terminals or Anderson-style connectors. Identify the negative terminal first, marked with a minus sign or the letters NEG, and loosen the nut on the negative terminal connector with your socket wrench. Slide the ring terminal off the negative post and secure it away from the battery using electrical tape or a cable tie to prevent accidental contact. Repeat this process for the positive terminal, marked with a plus sign or the letters POS. On a multi-battery pack, remove the series connection wires between batteries, noting their positions carefully by referring to your photograph.

    Once all wiring is disconnected, remove any hold-down straps, brackets, or foam padding that secures the battery in the compartment, then lift the battery out carefully. A fully charged 48-volt battery pack weighs twelve to eighteen kilograms depending on capacity, so lift with your legs rather than your back. Place the old battery on a flat, stable surface away from children and pets.

    Installation and First Charge Protocol

    Before installing the new battery, inspect the battery compartment for any signs of corrosion, debris, or damage to the wiring. Clean any corrosion from terminal posts using a terminal brush or a solution of baking soda and water, rinse with clean water, and dry thoroughly. Install any new hold-down hardware or foam padding that came with the replacement battery, then lower the new battery into the compartment with the terminal positions matching the photograph you took during removal. Reconnect the wiring in the reverse order of removal, connecting the positive terminal first and the negative terminal last, tightening each nut to a firm hand-tight plus a quarter turn with the socket wrench. Do not overtighten, as this can crack battery terminal housings.

    After all connections are secure, reinstall the battery compartment cover, switch on the main power, and verify that the scooter’s voltage display shows the correct pack voltage. If your multimeter is available, check the pack voltage at the main battery connector to confirm the correct total before taking your first ride. The first charge on a new replacement battery should be a full charge cycle, meaning you should charge until the charger indicates completion, then allow a thirty-minute rest period, then perform a full discharge ride before recharging again. This formation charge helps the new battery establish its full capacity and equalizes the charge across all cells in the pack.

    In markets across India, the Philippines, Nigeria, Kenya, Indonesia, and Vietnam, local battery shops and independent repair technicians offer battery replacement services for five to fifteen dollars in labor, which makes sense if you are not comfortable performing the removal and installation yourself. However, sourcing the battery directly from a quality manufacturer like CHISEN and either installing it yourself or having a local shop handle only the physical installation typically results in a better-quality battery at a lower total cost than buying through a middleman.

  • How to Test If a Lead-Acid Battery Is Still Good: Checks Anyone Can Do

    How to Test If a Lead-Acid Battery Is Still Good: Checks Anyone Can Do

    Before you spend eighty to two hundred dollars on a replacement battery, it is worth knowing whether the battery currently in your electric scooter is genuinely dead or whether the problem lies elsewhere in the vehicle. Lead-acid batteries fail in predictable stages, and understanding exactly where your battery sits on that failure curve determines whether you need an immediate replacement or whether there is still useful life remaining. The following tests can be performed at home with basic equipment costing less than twenty dollars, and they will give you a definitive answer about your battery’s condition in under thirty minutes.

    The Resting Voltage Test: Your First and Most Important Check

    The resting voltage test is the single most revealing diagnostic you can perform on a lead-acid battery, and it requires nothing more than a digital multimeter. The principle behind the test is straightforward: a lead-acid battery’s open-circuit voltage at rest is a direct function of its state of charge, and by comparing the resting voltage to a standard table, you can determine not only how charged the battery is, but whether it is capable of holding that charge properly.

    To perform the test correctly, you must first ensure the battery has been at rest for at least two hours since the last charge or discharge. This resting period allows the surface charge to dissipate and gives you a true reading of the battery’s chemical state. Set your multimeter to DC voltage, select a range that covers at least 20 volts, and connect the red probe to the positive terminal and the black probe to the negative terminal. Record the reading and compare it against the standard resting voltage table for a 12-volt lead-acid battery at 25 degrees Celsius.

    A fully charged battery reads between 12.7 and 12.9 volts, which corresponds to 100 percent state of charge and indicates the battery is healthy and ready for use. A reading of 12.4 to 12.6 volts corresponds to approximately 75 percent state of charge, which is acceptable for a battery that has been used but still has significant life remaining. A reading of 12.0 to 12.3 volts indicates roughly 50 percent state of charge, which is the point at which sulfation begins to form on the plates if the battery is not recharged promptly. A reading of 11.8 to 11.9 volts indicates a deeply discharged battery at approximately 20 percent state of charge, and this is the critical threshold below which permanent sulfation damage begins to accumulate. A resting voltage below 11.8 volts indicates a battery that has been severely discharged, likely sulfated, and should be replaced.

    When testing a 48-volt battery pack composed of four individual 12-volt batteries, multiply these values by four. A healthy fully charged 48-volt pack reads between 50.8 and 51.6 volts at rest. If your pack reads below 47.2 volts at rest, it has fallen below the replacement threshold and will not deliver useful service even after recharging.

    The Load Test: Measuring Performance Under Stress

    A resting voltage test tells you the state of charge, but it does not tell you how well the battery performs when current is actually being drawn. A load test simulates the real-world conditions of riding by applying a controlled discharge current to the battery and measuring how well it maintains voltage under load. There are two ways to perform a load test: with a dedicated battery load tester, which is the most accurate method, or by performing an informal load test with a multimeter during an actual ride.

    For a proper load test using a battery load tester, set the tester to apply a load equal to one-half of the battery’s amp-hour rating for fifteen seconds while monitoring the voltage. A healthy 12-volt battery should maintain above 9.6 volts under this load throughout the fifteen-second test period. If the voltage drops below 9.6 volts during the test, the battery is weak and should be monitored closely for replacement. If the voltage drops below 6 volts and does not recover, the battery has at least one dead cell and must be replaced immediately.

    For the informal on-road load test, fully charge the battery and ride the scooter at moderate speed while a passenger uses a multimeter to monitor the battery voltage in real time. Place one probe on the positive terminal and one on the negative terminal, and record the lowest voltage you see during the ride. A healthy battery under moderate load on flat ground should maintain at least 44 volts on a 48-volt pack throughout the ride. If the voltage drops below 42 volts during normal riding, at least one cell in the pack is failing to hold its charge under load, which is a strong indicator that the battery is approaching end of life.

    The Specific Gravity Test: For Flooded Batteries Only

    If your electric scooter uses a flooded lead-acid battery rather than a sealed AGM or gel battery, you can perform a specific gravity test using a hydrometer to measure the concentration of sulfuric acid in the electrolyte. This test provides the most accurate assessment of cell-by-cell health and can reveal imbalances between cells that voltage measurements alone might miss.

    A fully charged flooded cell has a specific gravity of approximately 1.265 at 25 degrees Celsius. A discharged cell has a specific gravity closer to 1.120. Draw electrolyte from each cell individually using the hydrometer, record the reading, and compare the results across all cells. A difference of more than 0.030 between the highest and lowest cells in the same battery indicates an imbalance that will progressively worsen, with the weakest cell dragging down the performance of the entire battery. Cells with specific gravity below 1.200 after a full charge are sulfated and unlikely to recover through normal charging. Specific gravity readings below 1.150 indicate a severely damaged cell that is approaching failure and should be replaced.

    The Visual Inspection Checklist: What Your Eyes Can Tell You

    Before you reach for any tools, a thorough visual inspection of the battery and its surroundings often reveals problems that are not apparent from electrical testing alone. Begin by examining the battery case for any signs of swelling, bulging, or deformation along the sides or top. A swelling battery indicates gassing from overcharging or an internal thermal runaway event, and it is a safety concern as well as a performance problem. Check the terminals for corrosion, which appears as a powdery white, green, or bluish deposit that can increase resistance and prevent the battery from charging or discharging efficiently. Inspect the battery cables for fraying, cracking, or melting of the insulation, which indicates excessive heat from high current flow. Look at the battery hold-down brackets and mounting hardware to ensure the battery is not shifting during rides, which can crack the case or loosen connections. Finally, examine the area around the battery for any signs of acid leakage, which appears as a whitish or yellowish powdery residue on the battery tray or mounting surface.

    When to Replace Versus When to Continue Using

    The decision to replace a lead-acid battery is based on a combination of capacity, voltage performance, and age. A battery that reads above 12.4 volts at rest and maintains voltage above 44 volts on a 48-volt pack under load, while delivering at least 80 percent of its rated range, still has useful life remaining and can be kept in service with careful monitoring. A battery that reads below 12.0 volts at rest, drops significantly under load, or delivers less than 60 percent of its rated range is in the terminal stage of its life cycle and should be replaced at the earliest opportunity to avoid being stranded with a dead scooter.

    The age of the battery also matters. Even a battery that tests reasonably well electrically is likely approaching end of life if it is more than three years old, because the calendar aging of lead-acid chemistry, driven by slow grid corrosion and electrolyte loss, reduces capacity regardless of how carefully the battery has been used. Replacement before complete failure is always less expensive than emergency replacement after being stranded, and sourcing a quality replacement battery from a manufacturer like CHISEN that performs formation testing and quality control on every unit ensures your new battery starts its life with the best possible foundation for long-term reliability.

  • How Often Should You Inspect Your Electric Scooter Battery? A Maintenance Schedule

    How Often Should You Inspect Your Electric Scooter Battery? A Maintenance Schedule

    Most electric scooter owners treat their battery as a sealed black box that either works or does not work. This passive approach to battery maintenance is understandable given that the battery is enclosed in the scooter’s chassis, but it is also the reason why thousands of riders discover battery problems only when their scooter stops moving mid-journey. A structured inspection schedule takes less than ten minutes per month and catches the overwhelming majority of battery failures while they are still manageable, often months before they would otherwise become apparent.

    The fundamental principle behind battery inspection is that lead-acid batteries almost never fail without warning signs. Capacity loss, sulfation, loose connections, and electrolyte problems all announce themselves through measurable changes in voltage, observable physical changes in the case and terminals, or shifts in charging behavior. A rider who knows what to look for and when to look for it can intervene early, either by correcting a charging problem or by sourcing a replacement battery before the old one strands them. The following schedule is designed to be practical for the average commuter while still being thorough enough to catch serious problems before they develop into dangerous situations.

    Weekly Visual Inspection: The Five-Minute Check

    The most frequent inspection most riders should perform is a simple visual check that takes five minutes at the start of each week. Before you ride, flip your scooter on its side or use a stand to elevate the deck so you can access the battery compartment, and examine the following items with a flashlight. Look at the battery case for any signs of swelling, bulging, or deformation, which indicate that gas has been generated inside the cells, usually from overcharging or an internal cell failure. Inspect the terminals and wiring for corrosion, which appears as a white, green, or bluish powdery deposit on the metal surfaces. Check that all wiring connections are secure by gently tugging on each connector without applying enough force to damage anything. Finally, look at the battery mounting hardware and hold-down brackets to ensure the battery is not shifting inside the compartment, which can crack case seams or damage connectors over time.

    In tropical and humid climates, such as those found throughout Southeast Asia, sub-Saharan Africa, the Caribbean, and Central America, the weekly visual inspection should also include a check for moisture buildup around the battery compartment. In cities like Manila, Lagos, Bangkok, and Jakarta, where relative humidity regularly exceeds 80 percent during the rainy season, condensation can form inside poorly sealed battery compartments, leading to terminal corrosion and eventually to electrical shorts or acid leakage. Wiping the exterior of the battery case with a dry cloth during the weekly inspection is a small effort that prevents a great deal of damage in humid climates.

    Monthly Voltage Test: Knowing What Is Inside the Pack

    Once per month, or every 25 to 30 charge cycles if you ride more frequently, you should perform a voltage measurement that tells you the actual state of health of your battery. The procedure is straightforward but requires a basic digital multimeter, available for five to ten dollars at any electronics store or online retailer. Set the multimeter to DC voltage, with a range that covers 20 volts or higher. With the scooter parked for at least two hours after the last charge cycle, touch the red probe to the positive terminal of the battery and the black probe to the negative terminal.

    For a single 12-volt battery, such as one cell of a 48-volt pack measured individually, the readings tell you everything about state of charge. A resting voltage of 12.7 to 12.9 volts indicates a fully charged battery at 100 percent state of charge. A reading of 12.4 to 12.6 volts indicates approximately 75 percent state of charge. A reading of 12.0 to 12.3 volts indicates 50 percent state of charge. A reading below 11.8 volts at rest indicates a deeply discharged battery that has been sulfated and should be replaced. When measuring a 48-volt pack, multiply these individual cell values by four, meaning a healthy fully charged 48-volt pack reads between 50.8 and 51.6 volts at rest, while a pack reading below 47.2 volts at rest is showing signs of significant degradation.

    Occasional riders, those who use their scooter less than twice per week, should perform this voltage test monthly regardless of how much they have ridden, because lead-acid batteries self-discharge at a rate of 3 to 5 percent per month and can become deeply discharged simply from sitting unused for extended periods. In cold weather countries like Norway, Sweden, Canada, and Finland, where a scooter might be stored for four to six months over winter, a monthly voltage check during storage is the only way to catch a battery that has self-discharged to a damaging level before it causes permanent sulfation.

    Quarterly Deep Inspection: Full Discharge and Balance Check

    Every three months, or approximately every 100 charge cycles for a daily commuter, you should perform a more comprehensive inspection that tests your battery under load and checks for imbalance between cells. The deep inspection begins with a full discharge test: fully charge the battery, allow it to rest for thirty minutes, then ride the scooter until the low-voltage cutoff engages. Record the total distance traveled and compare it to the distance you were getting when the battery was new. If your range has dropped by more than 20 percent compared to when the battery was new, it is time to investigate whether sulfation, cell imbalance, or another failure mechanism is at work.

    The cell balance check is performed by measuring the voltage of each individual 12-volt battery within the pack using a multimeter while the pack is fully charged. In a healthy 48-volt pack composed of four 12-volt batteries connected in series, each individual battery should read between 12.7 and 13.0 volts immediately after a full charge. If any battery reads below 12.4 volts or more than 0.5 volts below its neighbors, that battery is weaker than the others and is dragging down the performance of the entire pack. A weak cell in a series string is a progressive problem: the weakest cell discharges first during each ride, becomes the most deeply discharged, sulfates faster than the others, and eventually fails entirely, requiring replacement of the entire pack. Catching cell imbalance early through quarterly voltage checks allows you to replace a single weak battery before it destroys three healthy ones.

    Annual Professional Service: Beyond What You Can Do at Home

    Once per year, or whenever your quarterly inspection reveals a problem you cannot resolve, your battery should receive a professional service evaluation from a qualified electric mobility technician. A professional service includes a load test using a proper battery load tester, which applies a controlled discharge current to the battery and measures how well it maintains voltage under load. A load test reveals problems that resting voltage measurements alone cannot detect, such as a battery that shows correct resting voltage but collapses quickly under load due to high internal resistance.

    The technician also checks the specific gravity of the electrolyte in flooded lead-acid batteries using a hydrometer, which is not practical for the average home user. Specific gravity measurements tell you the state of charge of each individual cell and whether any cell is developing a problem long before it would be apparent from voltage readings alone. For sealed AGM batteries, the professional inspection includes an impedance test that measures the internal resistance of each cell, with higher-than-specification resistance indicating plate corrosion or separator degradation. If the annual inspection finds that the battery capacity has fallen below 70 percent of its rated value, or that any cell fails the load test, it is more economical to replace the battery than to continue paying for repeated repairs on a declining asset.

  • These 5 Riding Habits Are Destroying Your Lead-Acid Battery Faster Than You Think

    These 5 Riding Habits Are Destroying Your Lead-Acid Battery Faster Than You Think

    Every lead-acid battery has a finite number of charge cycles embedded in its chemistry, and every ride you take either extends or shortens that count. Most riders assume that batteries simply wear out over time through normal use, but the evidence tells a different story. In reality, the way you ride and maintain your electric scooter has an outsized effect on how many cycles you actually get from your investment. Five common riding habits, each seemingly harmless on its own, compound into a cycle life reduction of 20 to 40 percent, transforming a battery that should last three years into one that needs replacing in eighteen months.

    Habit One: Always Starting at Full Throttle

    The moment you twist the throttle to its maximum position from a standstill, your battery delivers a surge current that is two to three times higher than the current drawn during steady cruising. This is not a minor overdraw. Under full acceleration from rest, the instantaneous current draw on a 48-volt 20-amp-hour battery pack can spike to 50 or even 60 amperes, compared to the 15 to 25 amperes typical of gentle acceleration. The high current density forces a disproportionate amount of the discharge reaction to occur at the surface of the lead dioxide plates rather than distributing evenly through the active material depth.

    This uneven reaction causes what engineers call plate shedding, where active material flakes away from the plate surface and falls to the bottom of the cell. Once shed material accumulates to the point where it bridges the gap between positive and negative plates, it creates a hard internal short that destroys the cell. Even before that catastrophic failure point, plate shedding permanently reduces the surface area available for future chemical reactions, causing the battery to lose rated capacity with each aggressive start. Riders who habitually launch at full throttle from every stop sign see their cycle life reduced by 20 to 40 percent compared to riders who ease into acceleration, because the high-current starts accelerate plate degradation far faster than the manufacturer ever anticipated.

    The solution is counterintuitive but simple: start your ride at 50 to 60 percent throttle and ease into full speed over three to five seconds. This modest adjustment reduces peak current draw by half while adding only a few seconds to your journey time. The battery rewards you with dramatically slower capacity fade and noticeably longer overall lifespan.

    Habit Two: Riding to Zero Percent Every Single Time

    Deep discharging a lead-acid battery to the point where the scooter’s low-voltage cutoff engages is one of the most damaging practices a rider can adopt. When a lead-acid cell is discharged below approximately 10.5 volts, the lead sulfate crystals that form on the plates during discharge become larger and harder to dissolve during the next charge cycle. This crystallization process, called sulfation, permanently reduces the plate surface area available for future charge acceptance. Each deep discharge event below 20 percent state of charge leaves the plates in a progressively more sulfated state, and the damage is cumulative and irreversible.

    A battery that is consistently discharged to zero percent will lose 30 to 50 percent of its rated capacity within 100 to 150 cycles, compared to a battery that is kept between 20 and 80 percent state of charge, which can deliver 300 or more cycles before reaching 80 percent of original capacity. The practical reality is that most scooter controllers have a low-voltage cutoff set between 39 and 42 volts for a 48-volt pack, which means you are hitting true near-zero stress on the cells every time you ride until the scooter barely moves. Recharging when the battery reaches 20 to 30 percent state of charge, rather than waiting for the cutoff, adds significantly to the number of cycles you can extract from the battery before replacement becomes necessary.

    Habit Three: Charging Immediately After Riding

    Pulling into your garage and immediately plugging in the charger is a habit born of good intentions but poor battery chemistry. During a ride, the chemical reactions inside a lead-acid battery generate heat, and the plates expand slightly under the thermal stress of high current flow. If you charge the battery while it is still warm, the charging voltage threshold that triggers gassing is reached at a lower actual state of charge because the battery’s internal resistance is elevated by residual heat. This means that the charger continues pushing current into an already-stressed battery, accelerating grid corrosion on the positive plates and promoting electrolyte loss through gassing.

    Thermal damage from immediate post-ride charging accumulates silently. Each cycle where the battery begins charging above 35 degrees Celsius accelerates grid corrosion by a factor of two to three compared to charging at room temperature. After fifty to one hundred cycles of this habit, the positive grid structure weakens, positive active material shedding increases, and the battery’s internal resistance rises noticeably. The practical symptom is a battery that seems to charge fully but delivers noticeably reduced range. In tropical climates across Southeast Asia, Africa, and South America, where ambient temperatures regularly exceed 30 degrees Celsius in the afternoon, charging a warm battery from a hot ride is especially destructive, and riders in cities like Bangkok, Lagos, Jakarta, and São Paulo should always allow their batteries to cool to ambient temperature before connecting a charger.

    Habit Four: Parking in Direct Sunlight

    An electric scooter parked in direct sunlight, particularly on a dark-colored vehicle body, can heat its battery compartment to 55 to 65 degrees Celsius in under an hour on a sunny day. At these temperatures, the electrochemical reactions inside a lead-acid battery accelerate dramatically, causing increased self-discharge, accelerated grid corrosion, and electrolyte drying. The sealed AGM batteries commonly used in electric scooters are particularly vulnerable because their recombinant chemistry depends on the electrolyte remaining in close contact with the plate surfaces. When heat causes the electrolyte to gas off or migrate away from the plates, the recombination efficiency drops, water loss accelerates, and the battery ages faster even while parked.

    Parking in shade or indoors during warm weather reduces the battery compartment temperature by 15 to 25 degrees Celsius compared to direct sun exposure, and this temperature reduction translates directly into slower chemical aging, lower self-discharge rates, and a longer calendar life. In countries like India, Pakistan, and Nigeria where summer temperatures routinely exceed 40 degrees Celsius, parking management is not optional for anyone who wants their battery to last more than two years.

    Habit Five: Overloading Beyond Rated Weight

    Every electric scooter has a rated maximum load, typically between 100 and 150 kilograms for a standard commuter scooter, which includes the rider, any cargo, and the weight of the battery itself. When this rated load is consistently exceeded, the motor draws higher current to maintain speed or climb gradients, and the battery feels the strain through elevated discharge rates. A rider weighing 100 kilograms on a scooter rated for that load draws approximately 20 to 25 amperes at cruising speed on flat ground. That same rider carrying a 20-kilogram load and weighing a total of 120 kilograms increases the current draw to 25 to 30 amperes, an increase of 20 to 25 percent that occurs throughout every ride.

    The cumulative effect of this additional load stress is significant. Higher discharge currents accelerate the same plate shedding and sulfation processes described earlier, and the mechanical vibration from carrying heavier loads also increases the rate at which connections loosen and active material sheds from the plates. Riders who consistently operate at or beyond the rated load should consider upgrading to a scooter with a higher weight rating, using a more powerful battery configuration to handle the additional current draw, or reducing cargo weight to bring the total load back within specification.

  • Electric Scooter Lead-Acid Battery Prices 2025: What Does a Replacement Actually Cost?

    Electric Scooter Lead-Acid Battery Prices 2025: What Does a Replacement Actually Cost?

    The cost of replacement lead-acid batteries for electric scooters varies enormously in 2025 — from $12-15 USD for a no-name 12V 12Ah battery to over $100 USD for a premium branded unit with full warranty coverage. Understanding exactly what determines these prices, where the genuine value lies, and how to avoid being overcharged or sold counterfeit products will help you make smart purchasing decisions whether you’re buying one replacement battery for your personal scooter or sourcing hundreds for a commercial fleet.

    Prices vary significantly by region due to import duties, shipping costs, local distribution markups, and currency exchange rates. A battery that costs $35 USD from a Chinese manufacturer may retail for $55-75 USD in Europe, $60-85 USD in Africa, or $45-65 USD in Southeast Asia after accounting for shipping and local markup.

    2025 Price Landscape: The Real Range by Specification

    Here’s a practical guide to current market pricing for lead-acid batteries commonly used in electric scooters:

    12V 7Ah battery (small folding scooters, children’s vehicles):

    • Budget/no-name: $12-18 USD
    • Mid-range quality: $20-30 USD
    • Premium brand: $30-45 USD

    12V 12Ah battery (most common replacement size, fits 36V and 48V systems):

    • Budget: $15-25 USD
    • Mid-range quality: $30-45 USD
    • Premium brand: $45-70 USD

    12V 20Ah battery (extended range, delivery-grade applications):

    • Budget: $30-45 USD
    • Mid-range quality: $50-75 USD
    • Premium brand: $75-110 USD

    Complete battery packs:

    • 36V 12Ah SLA pack (3 × 12V 12Ah): $60-130 USD depending on brand
    • 36V 20Ah SLA pack (3 × 12V 20Ah): $90-200 USD depending on brand
    • 48V 12Ah SLA pack (4 × 12V 12Ah): $80-170 USD depending on brand
    • 48V 20Ah SLA pack (4 × 12V 20Ah): $120-260 USD depending on brand

    For a complete 36V 12Ah battery pack (the most common replacement configuration for mid-range e-scooters), expect to pay $60-130 USD for a quality branded product in 2025. A budget pack at $40-50 USD may work for occasional use but should not be relied upon for daily commercial operations.

    Why Do Prices Vary So Much Between Brands?

    The price variation is driven by several genuine and legitimate factors — not all of which are equally important for every buyer:

    Brand and reputation: Established battery brands invest in quality control, R&D for improved plate alloys and separator materials, customer service infrastructure, and warranty support. You’re paying for the brand’s track record, consistency, and accountability — not just the raw materials inside the box.

    Manufacturing quality — specifically plate thickness: As discussed in detail in our previous article, plate thickness is the single most reliable indicator of cycle life. A manufacturer using 3.0mm positive grids has higher material costs than one using 1.5mm grids. A quality 12V 12Ah AGM battery at 3.8-4.2 kg costs more to manufacture than a budget equivalent at 2.8-3.2 kg. The extra cost translates directly to longer life.

    Lead purity: Refining lead to 99.99% purity (Grade A lead) costs more than 99.0% purity lead (Grade B or recycled industrial lead). Impurities in lower-purity lead accelerate grid corrosion and reduce cycle life. The cost difference is embedded in the battery price.

    Warranty scope and duration: A 12-month capacity warranty against dropping below 80% of rated Ah costs the manufacturer money — they must maintain reserves to cover expected warranty claims. A 6-month defect-only warranty costs them very little. A battery priced $10 cheaper might offer only a 6-month defect warranty versus a 12-month capacity warranty — a significant difference in actual consumer protection.

    Freshness: A battery manufactured 18 months ago and stored in a tropical warehouse has degraded before you install it. Some sellers discount older stock to move inventory. The savings rarely compensate for reduced starting capacity and accelerated early failure. Always verify the manufacturing date before purchase.

    Distribution channel markup: Batteries purchased from authorized distributors or OEM parts departments include a markup that funds the retailer’s storage, staff, warranty handling, and overhead. Batteries purchased directly from wholesale distributors or manufacturers are cheaper but may offer less recourse if the battery fails prematurely.

    Regional Price Variations: What to Expect in Your Market

    Europe and North America: The strongest regulatory environments (EU Battery Regulation, US EPA standards) filter out the worst quality products. However, this also means higher baseline prices. Expect to pay $60-130 USD for a quality 36V 12Ah pack. OEM replacement batteries from major scooter brands are available at $80-150 USD. Third-party quality batteries from CHISEN and similar manufacturers are available through importers at $50-90 USD.

    Southeast Asia (Thailand, Vietnam, Indonesia, Philippines): Regional manufacturing and distribution keep prices competitive. Quality batteries are available from local distributors at $40-70 USD for a 36V 12Ah pack. Cheap Chinese imports are widely available at $25-40 USD but should be evaluated carefully using the plate thickness and warranty criteria.

    Africa (Nigeria, Kenya, Ghana, South Africa): Import duties, currency fluctuations, and limited local manufacturing create significant price variability. A 36V 12Ah pack might retail for $70-120 USD in Lagos or Nairobi due to import costs and local distribution margins. Sourcing directly from manufacturers or their authorized regional distributors can significantly reduce costs. Currency hedging and bulk purchasing through fleet operators can lower per-unit costs by 20-30%.

    Middle East (UAE, Saudi Arabia, Qatar): High consumer purchasing power means retail prices are at the upper end of the global range. Quality AGM batteries for high-temperature operation command a premium. Expect $70-130 USD for a quality 36V 12Ah pack. OEM parts from local dealers are widely available but expensive.

    South Asia (India, Pakistan, Bangladesh, Sri Lanka): The fastest-growing electric two-wheeler market globally has intense competition among battery suppliers. Prices are competitive for quality products: $35-60 USD for a quality 36V 12Ah pack. India in particular has strong domestic battery manufacturing that keeps prices lower than import-dependent markets.

    Where to Buy: Channel Comparison

    Online marketplaces (Amazon, AliExpress, eBay, regional platforms): Widest selection and often lowest prices, but quality inconsistency is significant. Stick to sellers with verified high ratings and review history. Look for batteries with clear manufacturing dates, ISO certifications, and specific warranty terms. Avoid listings with no brand name, vague specifications, and no warranty information.

    Battery specialty distributors: Specialists in batteries often have proper storage conditions (climate-controlled warehouses), knowledgeable staff who can verify compatibility, and batteries with known manufacturing dates. They’re typically 10-20% more expensive than marketplace sellers, but the added confidence and support is worth it for important applications.

    OEM parts departments: Direct from the scooter manufacturer is the most expensive option but guarantees compatibility. Use this route when you’re unsure of exact specifications, or when your scooter uses a non-standard configuration. For commercial fleets with 50+ scooters, OEM parts simplify inventory management even at a premium.

    Red flags that signal poor quality or counterfeits: Prices 50%+ below market rate for a known-quality brand. No brand name, no manufacturer address, no certifications. Listings with stock photos that don’t match the actual product. Sellers who cannot or will not provide manufacturing date information. Generic packaging with no technical specifications or safety markings.
